Telefunken M17-11W
M17-11GM/M17-11LF

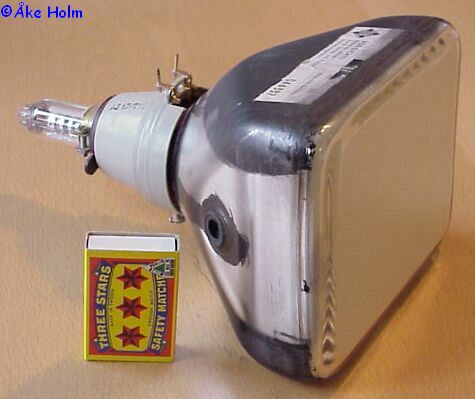

This is a Telefunken CRT with magnetic deflection. It was intended for viewfinders in TV-cameras or as radar display (GM or LF-phosphor). The useful screen dimension is 95 x 125 mm (6" diagonal)
