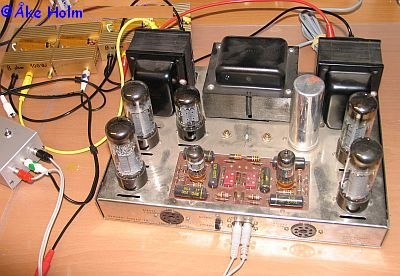

Dynaco Stereo 70



Tested data:
1. THD at 1 kHz and 1 W per channel
2. THD at 1 kHz and 10 W per channel
3. THD at 1 kHz and 25 W per channel
4. IMD at 1 W per channel
5. IMD at 10 W per channel
6. IMD at 25 W per channel
7. DFD at 1 W per channel
8. DFD at 10 W per channel
9. DFD at 25 W per channel
10. Frequency response
11. Noise floor

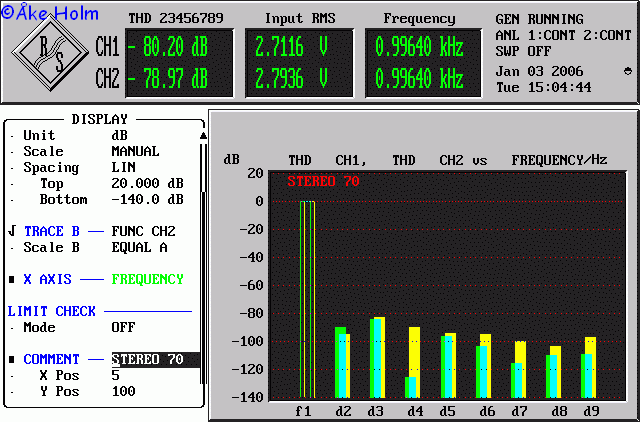

THD at 1 W per channel = 0,01%

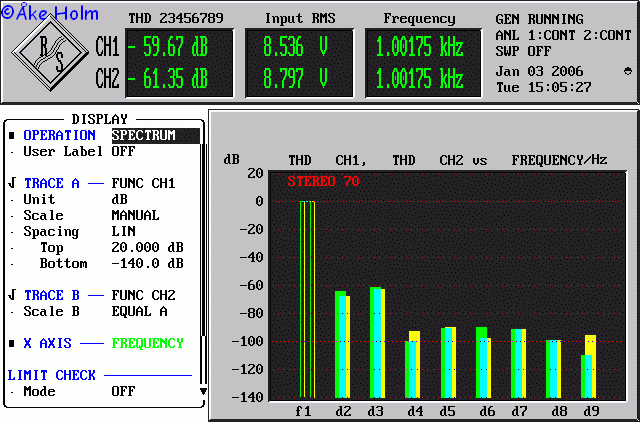

THD at 10 W per channel = 0,1%

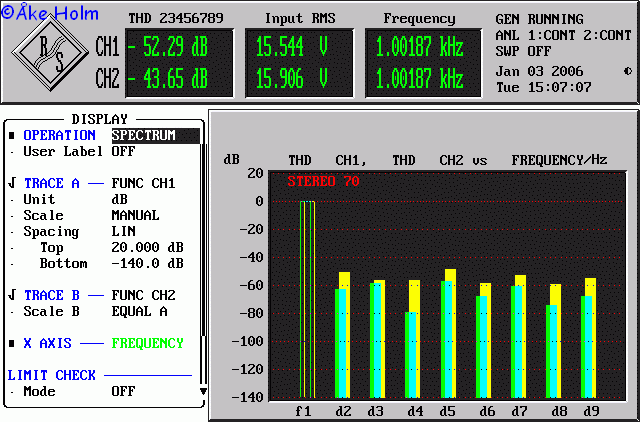

THD at 28 W per channel = 0,25% and 0,71%

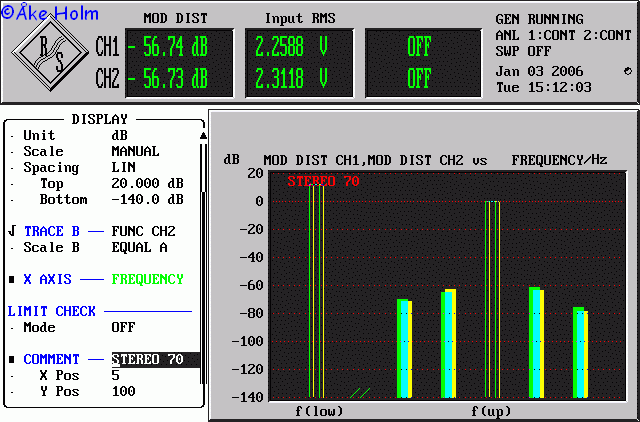

IMD at 1 W per channel = 0,16%

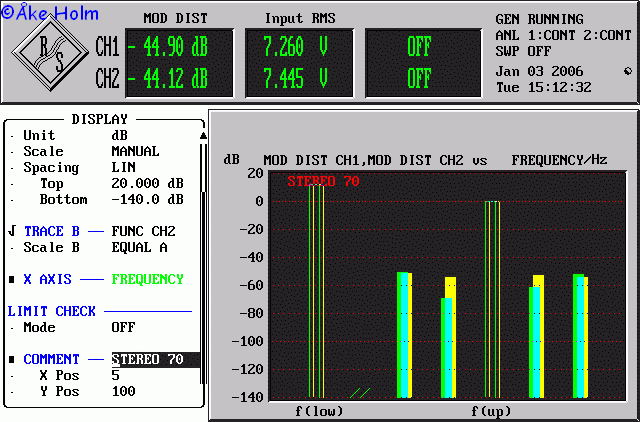

IMD at 10 W per channel = 0,63%

IMD at 25 W per channel = 1%

DFD at 1 W per channel = 0,07%

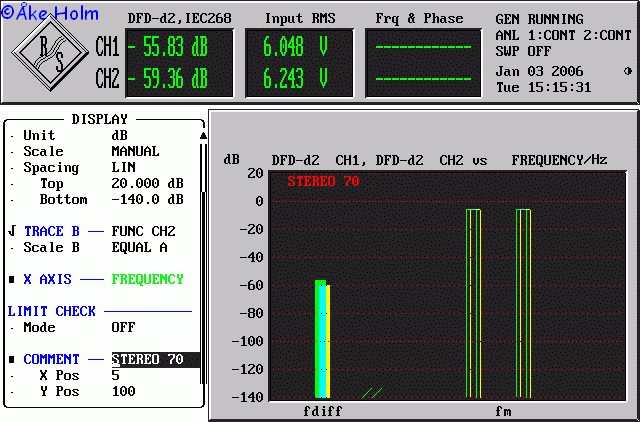

DFD at 10 W per channel = 0,18%

DFD at 25 W per channel = 0,56%

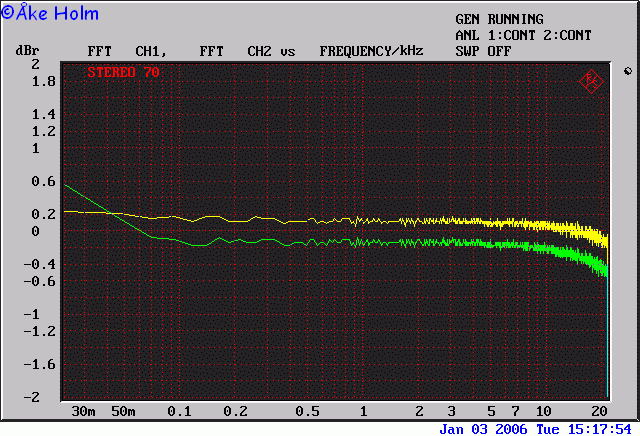

Frequency response

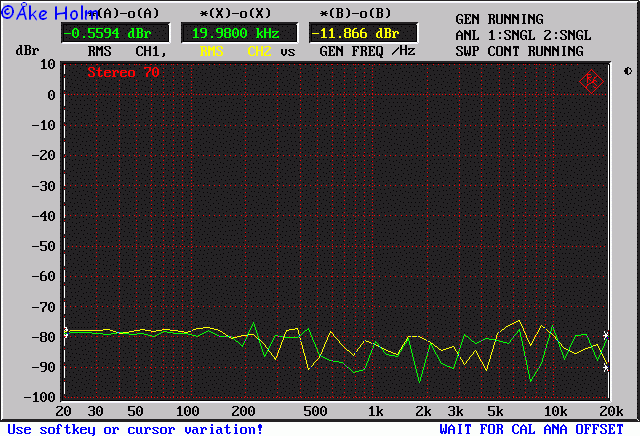

Signal to noise
0dBr = 1Vrms which means that the noise floor is approx. -95 dB below 10 W output
